Improve Wash Efficiency by 80% | Model 9117 Commercial Washer

Product information

Model 9117

Smart commercial washer supporting reliable hygiene across UK production

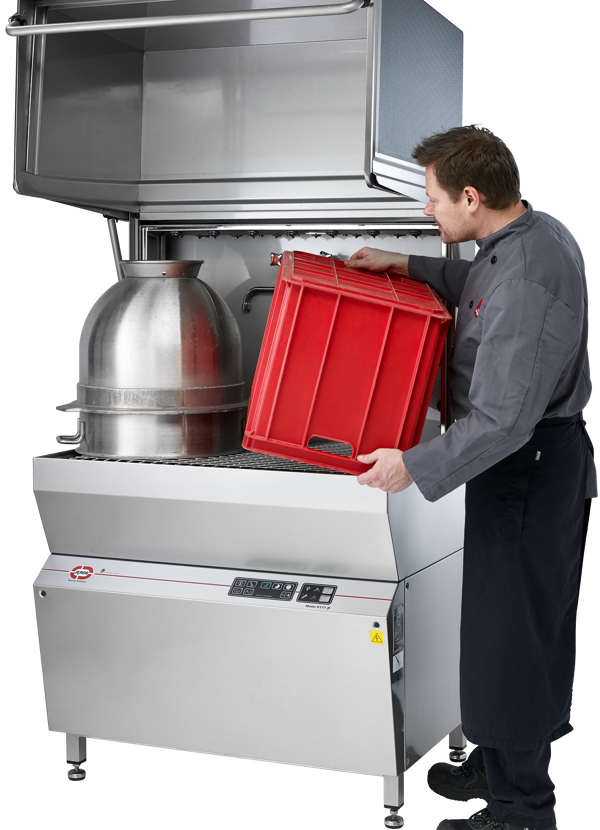

The JEROS Model 9117 is a compact yet powerful commercial washer developed for UK food producers who rely on consistent hygiene and smooth, uninterrupted workflows. Whether in a bakery, dairy, catering kitchen, or mixed processing facility, the 9117 offers stable performance during long operating hours and reduces the need for repetitive manual handling.

Built on a proven wash principle and supported by intelligent energy management, the machine provides efficient cleaning while maintaining a comfortable working environment for operators. As a heavy-duty commercial washer, it is designed to handle Euro crates, trays, deep tubs, and a variety of production tools, delivering dependable wash quality throughout each cycle.

A moving wash frame ensures every surface is reached. At the same time, the upright lid and insulated tanks keep energy use low and reduce the overall footprint – all of which contribute to significantly lower resource consumption compared to manual washing.

Constructed from stainless steel and engineered for years of industrial use, the Model 9117 delivers documented results, reducing water, chemical, and energy use compared to manual washing.

Key advantages of the Model 9117

Moving wash frame for thorough, consistent coverage
Automatic detergent dosing with a steady 85°C final rinse
Up to 80% water reduction compared to manual washing
Up to 25% lower energy usage compared to manual washing
Smooth, rounded internal surfaces designed for easy cleaning
Upright lid offering access from three sides, ideal for compact workstations.

Interested in how the Model 9117 fits into your production flow? Please read along or speak with a JEROS advisor today ⇨

Download brochure

Watch film

Download Specification Sheet

Product features

	All JEROS machines feature automatic, sensor-controlled dosing of soap during washing and sanitising fluid during rinsing. The sensor measures wash quality for each cycle and automatically dispenses the required amount, ensuring consistent soap concentration and significantly reducing costs while protecting the environment.
	The JEROS Basic has two rotating wash arms and rinse arms placed in the lid and in the base of the machine.
	Many known fast food restaurants and supermarket chains use JEROS Basic washers thanks to their high wash throughputs and small footprint size.
	Energy saving up to 25% – Series 9100 are as standard equipped with “in-version” as standard. This means that all the machines have water saving rinse nozzles and that both the wash and rinse tanks are isolated, as also the lid is with double wall and isolated. The machines therefore require less operating power, resulting in energy and water savings of up to 25% for all the models.

Wash Tank (ltr) – 64
Rinse Tank (ltr) – 25
Water Consumption Per Wash (ltr) – 8
Wash Pump Capacity – 600
Wash Temperature – 58°c
Rinse Temperature – 85°c
Wash Time (min) – 3+3+6
Wash Pressure (bar) – 0.9 – 1.2
Rinse Pressure (bar) – 1.1
Wash Pump (kw) – 2
Current Rating (amp) – 25
Connection (kw) – 12

Cut wash time by 80% compared to manual washing with the Model 9117 commercial washer. Ensure reliable 85°C hygiene for modern food production.

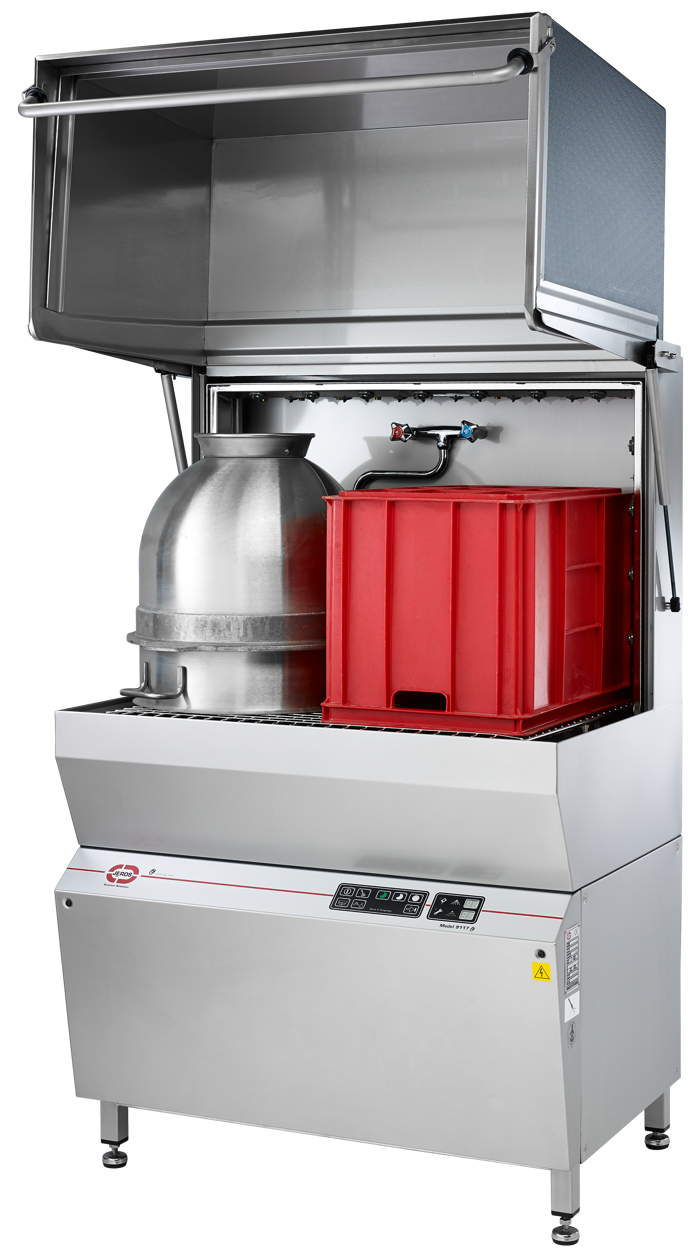

Introducing the JEROS Model 9117

Created for food producers where reliable hygiene and operational efficiency must coexist

Across the UK, food manufacturers are required to meet strict hygiene standards while maintaining a steady production pace.

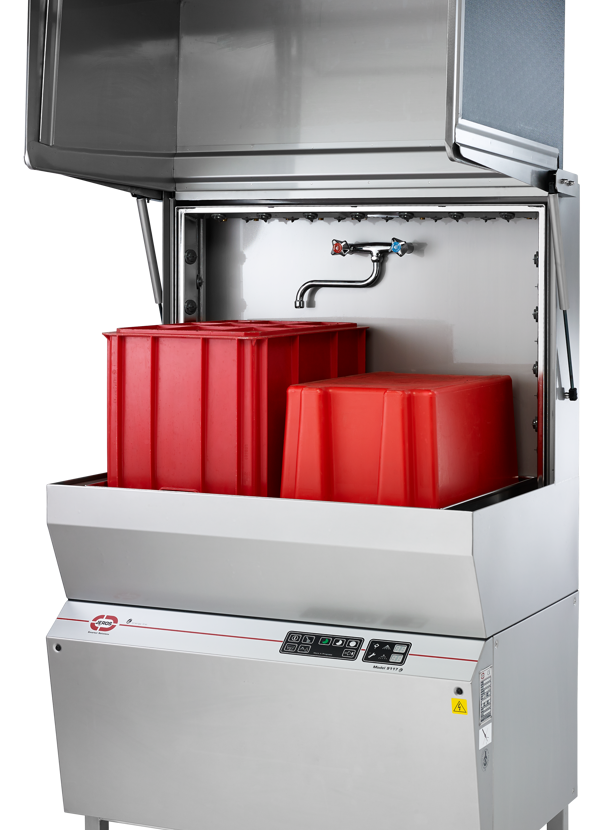

The Model 9117 meets these demands with a wash system capable of handling Euro crates, trays, GN pans, utensils, tubs, and various pieces of equipment — all while reducing wash time and water use by up to 80% compared to manual washing.

Its versatility makes it well-suited for dairies, meat and poultry processors, bakeries, snack manufacturers, and large-scale catering environments.

A compact layout designed around operator comfort

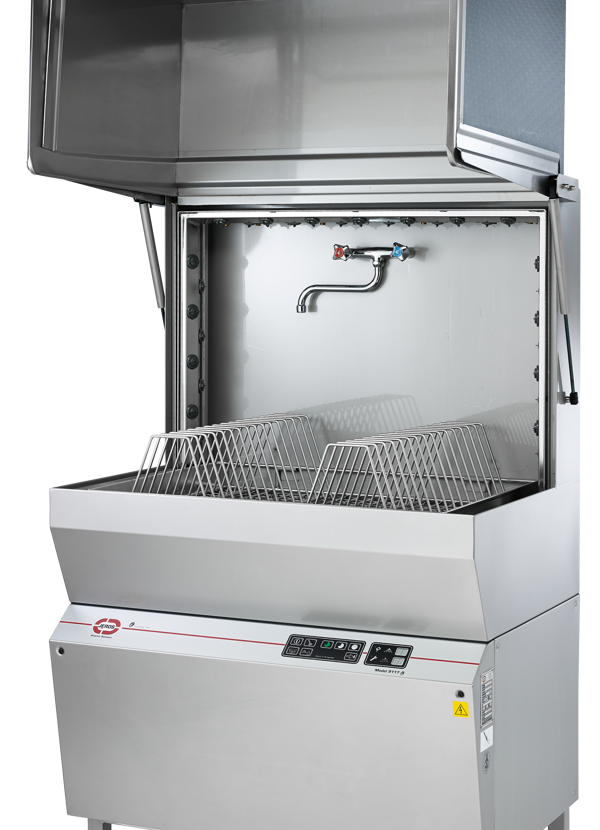

With free access from three sides, the vertical lid design creates a natural working position that reduces physical strain and makes loading straightforward. The Model 9117 can be:

configured in a corner arrangement
positioned within a pass-through layout
integrated into table systems in restricted spaces

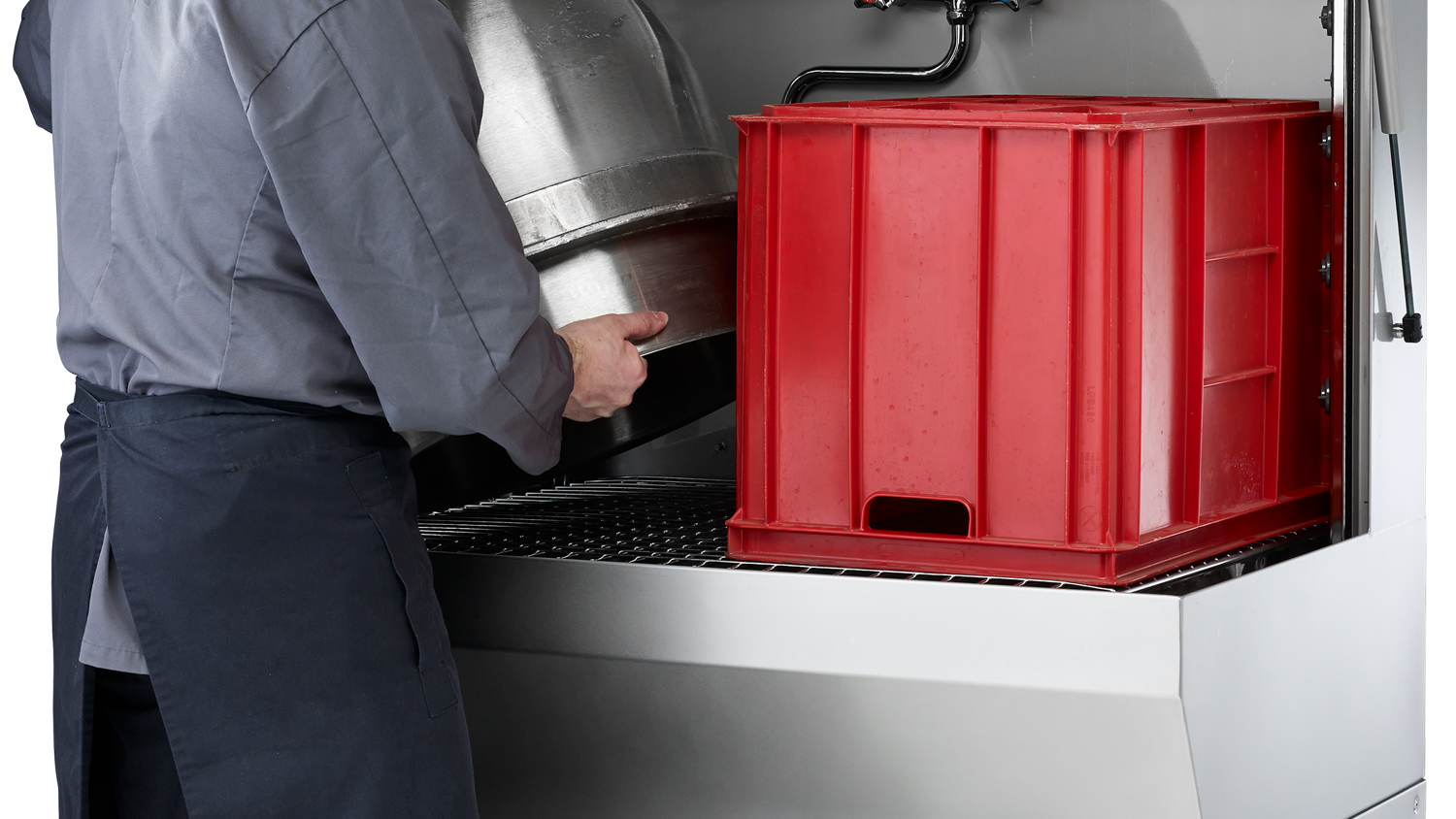

This flexible setup supports a smooth workflow, particularly during peak production. The integrated mixing tap and spray hose allow quick pre-rinsing before loading.

Explore installation setups suitable for your environment

Energy-efficient commercial washer with dynamic wash frame

A moving wash frame that cleans reliably from every angle

At the heart of the Model 9117 is the JEROS moving wash frame, designed to shift continually during the wash cycle. As it travels through the chamber, the frame adjusts the water pressure to dislodge debris from trays, containers, and deep-seated equipment.

With selectable pressure levels of 0.9 or 1.2 bar, the system delivers highly consistent cleaning results without requiring manual pre-rinsing. This controlled motion is one of the reasons food businesses across Europe rely on JEROS commercial washing equipment.

Lower consumption paired with reliable wash performance

As part of the JEROS i-version, the Model 9117 includes insulated tanks, a double-walled lid, and rinse nozzles designed to minimize water usage.

Together, these features deliver up to 25% lower energy use and up to 80% less water consumption than manual washing.

The ECO programme uses reduced temperatures for lightly soiled items while still providing a consistent 85°C final rinse. This approach supports a more resource-conscious cleaning process without compromising hygiene.

Hygienic design right down to the finer points

Internal surfaces are shaped to support smooth drainage.

Electropolished stainless steel helps prevent residue from adhering, and a self-cleaning microfilter keeps the wash water clear throughout operation.

Automatic detergent dosing provides stability across cycles, while the constant 85°C final rinse helps secure documented hygiene.
Each unit is verified by Eurofins Steins Laboratory and built in accordance with HACCP guidelines.

Energy-efficient commercial washer

Straightforward operation with simplified daily maintenance

All settings are accessed via the intuitive touch panel, where operators can adjust wash time, temperature, and program options.

The stainless-steel AISI 304 structure ensures long-term reliability, and the multi-stage filtration system significantly reduces daily maintenance.

Coarse and fine filtration – supported by a self-cleaning microfilter – maintains water clarity and helps reduce detergent use compared to manual washing.

Internal surfaces are smooth and easy to rinse, and the integrated spray hose facilitates quick end-of-shift cleaning.

Discuss maintenance routines and long-term performance with our technical team

Energy-efficient commercial washer with moving wash frame

Specifikationer	Data over Model 9117
Vaskevolumen	645 × 830 × 635 mm
Maskinvolumen	2100 × 1631 × 1085 × 855 mm
Vandforbrug	8 liter pr. vask
Vasketid	3 + 3 + 6 min
Vasketryk	0,9–1,2 bar

Skylletemperatur	85 °C
Strømtilslutning	3N ~ 400 V / 9,5 kW / 16 A
Kapacitet	2 Euronorm-kasser (400×600 mm) eller 30 plader (600×400 mm)
Materiale	Rustfrit stål AISI 304, isolerede tanke og låg
Tilvalg	Blandingsbatteri, spuleslange, hjul, dampkonverter, ekstra vaskehøjde (+230 mm)

FAQ | Wondering how the JEROS Model 9117 could fit into your production? Here are answers to the questions UK businesses ask most frequently:

What sets the Model 9117 apart from other commercial washers?

How much water and energy does the 9117 save?

Facilities typically see a substantial decrease in resource use. With insulated tanks, a double-walled lid, and efficient rinse jets, the Model 9117 uses up to 80% less water and approximately 25% less energy than manual washing. The ECO programme strengthens these savings while still delivering an 85°C final rinse.

Which items can be washed in the machine?

How does JEROS ensure reliable hygiene?

Hygiene is built into the structure. Smooth, rounded surfaces reduce residue accumulation, electropolished steel supports easy cleaning, and the constant 85°C final rinse ensures disinfection.

A self-cleaning microfilter maintains water clarity throughout each cycle. Every machine is tested by Eurofins Steins Laboratory and complies with HACCP principles.

Is installation and maintenance straightforward?
